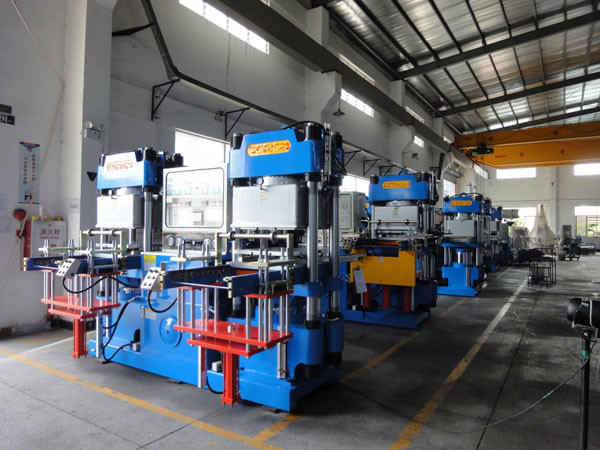

Hydraulic Vacuum Rubber Compression Molding Machine Industrial Platen Vulcanizing Press

Product Categories

Keribo Heat Exchange Equipment (Qingdao) CO., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Hydraulic Vacuum Rubber Compression Molding Machine Industrial Platen Vulcanizing Press

Brand Name : HC

Model Number : X（S) K

Certification : ISO

Place of Origin : Qingdao

MOQ : 1

Price : $70000

Payment Terms : T/T,L/C

Supply Ability : 30sets/month

Delivery Time : 30days

Packaging Details : Pallet

Specification : 200TON

Transport Package : Film Package

Type : Four-Column Hydraulic Press

Main Ram Diameter (mm) : Ø250

Stroke of Main Ram (mm) : 250

Contact Now

Product Description

The vacuum rubber molding press is used in the production of auto parts, rubber fasteners, cookware, industrial rubber and a wide range of other rubber products.

Features

1. Dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously.

2. Front mold is suitable for variety 2-layers or multi-layers molds.

3. Lift and clamping mold speed can be adjustable, accuracy and reliability.

4. Out-In mold positioning accuracy

5. Vacuum chamber can reach 650-700mmHg within 5 seconds.

6. Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure.

7. Machine structure has gone through pressure and strain analysis. It has a long service life.

8. Special designed hot plate with a uniform distribution of temperature to ensure the molding quality

Technical Parameters

Mold-locking force	200 TON
Max.working pressure	210 kg/cm2
Main engine piston diameter	360mm
Max.stroke	250mm
Opens the files most greatly	300mm
Motor power	18.3kwx2
Thermo plate dimension	505*510mm
Mold frame plate size	500*500mm
Mold use thickness	50~150mm
Main engine horsepower	15HPX6P(11.2KW)
Vacuum horsepower	VC-75(1.85KW/50Hz)
Fuel tank volume	700L

Applications: The Vacuum Vulcanizing Press Machine is ideal for the production of making rubber&silicone parts, such as O-rings,seals,keyboards,connector,bushing,rubber medical products,etc.

Packing Display

Hydraulic Vacuum Rubber Compression Molding Machine Industrial Platen Vulcanizing Press
