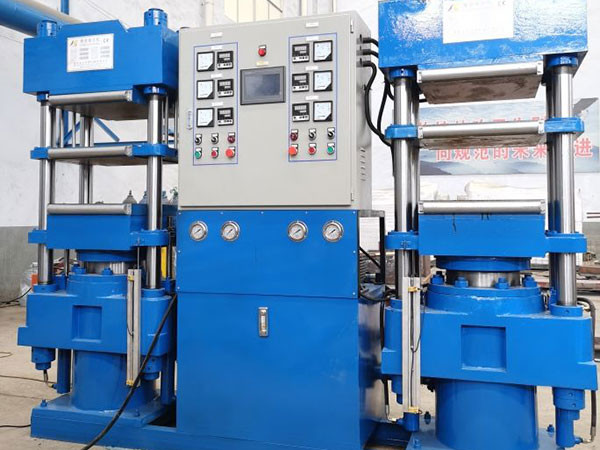

Column Vacuum Silicone Rubber Compression Molding Press Machine

Brand Name : HC

Model Number : XLB

Certification : ISO

Place of Origin : Qingdao

MOQ : 1

Price : $10000

Payment Terms : T/T,L/C

Supply Ability : 30sets/month

Delivery Time : 30days

Packaging Details : Pallet

Hydraulic Unit : Rexroth , Huade ,Yuken ,Seven Ocean

Electric Parts : Chnt,Siemens etc

Piston : Chilled Cast Iron HS 72-75 Hardness

Specification : 20 CBM

Contact Now

Product Description

The vacuum rubber molding press is used in the production of auto parts, rubber fasteners, cookware, industrial rubber and a wide range of other rubber products.

Features

· Dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously.

· Front mold is suitable for variety 2-layers or multi-layers molds.

· Lift and clamping mold speed can be adjustable, accuracy and reliability.

· Out-In mold positioning accuracy

· Vacuum chamber can reach 650-700mmHg within 5 seconds.

· Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure.

· Machine structure has gone through pressure and strain analysis. It has a long service life.

· Special designed hot plate with a uniform distribution of temperature to ensure the molding quality.

Technical Parameters

Mold-locking force	200 TON
Max.working pressure	210 kg/cm2
Main engine piston diameter	360mm
Max.stroke	250mm
Opens the files most greatly	300mm
Motor power	18.3kwx2
Thermo plate dimension	505*510mm
Mold frame plate size	500*500mm
Mold use thickness	50~150mm
Main engine horsepower	15HPX6P(11.2KW)
Vacuum horsepower	VC-75(1.85KW/50Hz)
Fuel tank volume	700L

Packing Display

Column Vacuum Silicone Rubber Compression Molding Press Machine
